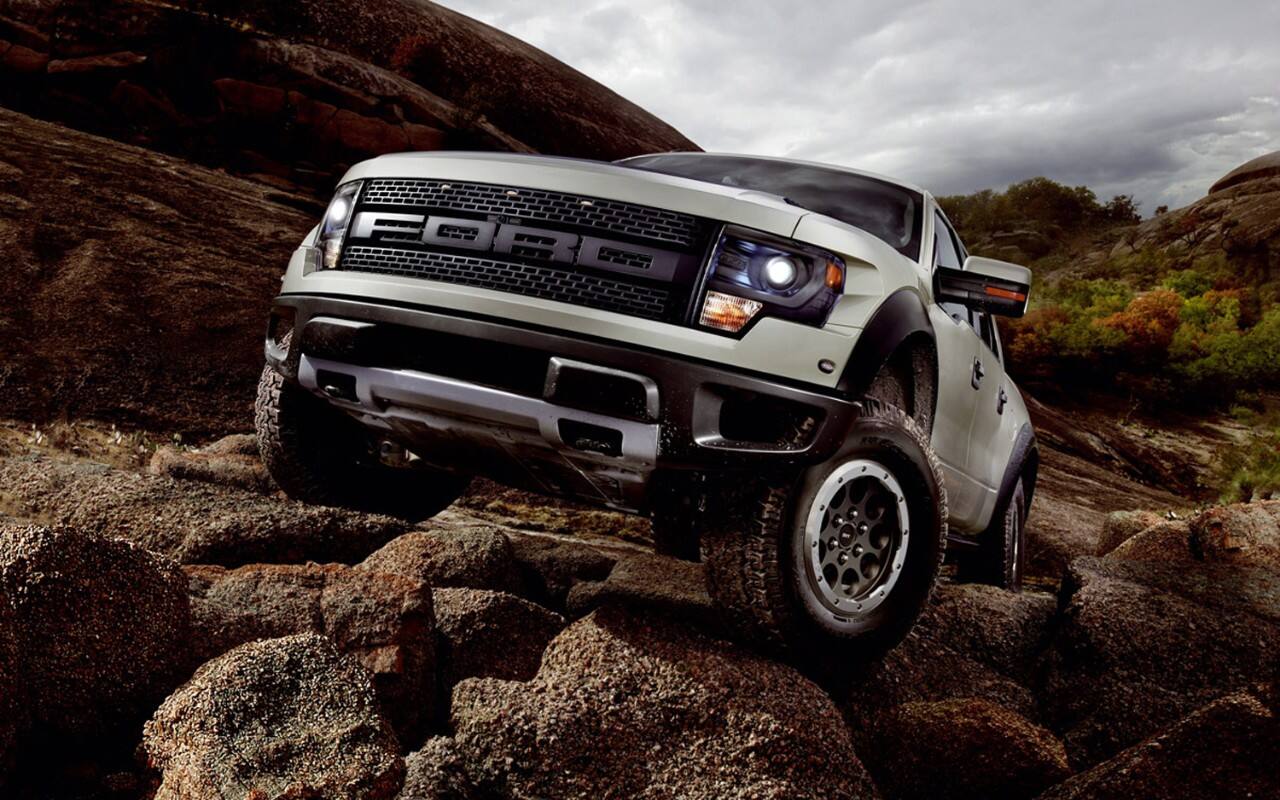

2013 F-150 Raptor SVT


2013 Ford F-150 Raptor SVT

The 2013 SVT Raptor became the first vehicle available with factory beadlock-compatible alloy wheels, which also happen to be the world’s first wheels with conventional and beadlock mounting abilities. Beadlocks secure the edges of the tire between two surfaces, preventing the tire from rolling off the rim when off-roading with low tire pressure. The new beadlock wheels add off-road prowess to the already capable SVT Raptor, which boasts a standard Torsen limited-slip differential, electronic-locking rear differential, and internal triple-bypass FOX Racing Shox dampers. SVT also added HID headlamps, which complement the existing front-view camera.

Type: 90-degree SOHC 16-valve V-8
Displacement: 6.2L / 379 CID
Horsepower: 411 hp @ 5500 rpm
Torque: 434 lbs.-ft. @ 4500 rpm
Bore x Stroke: 4.02 in. x 3.74 in.
Compression: 9.8:1

Front: Coil-on-shock, long-spindle double wishbone independent, aluminum lower control arms, forged-steel upper arms and FOX Racing Shox™
Rear: Hotchkiss-type non-independent live axle, leaf springs, outboard shock absorbers and FOX Racing Shox™

Front: 13.8 in. vented discs
Rear: 13.7 in. vented discs
ABS: Four sensor ABS system

Wheels: 17 x 8.5 in. black-painted aluminum
Tires: BFGoodrich All-Terrain TA/KO LT315/70R-17


0-60 mph: 6.9 seconds (Motor Trend)
60-0 mph braking: 146 feet (Motor Trend)
1/4-mile @ MPH: 15.4 seconds @ 91.0 mph (Motor Trend)
Total Produced: Not Available.
